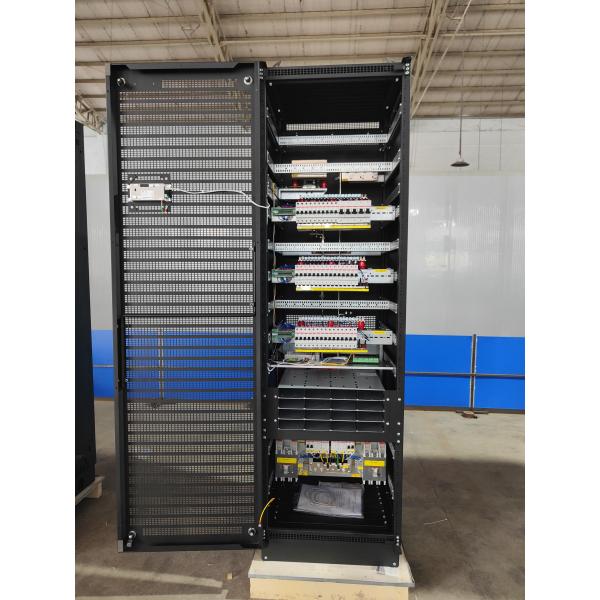

This power cabinet, sized H2000W600D650mm with an IP20 enclosure and front door, features AC in at the bottom and DC out at the top for easy cable management. It offers 48V 48KW capacity, with 16 slots (all fitted with Flatpack2 48/3000HE rectifiers). The Smartpack2 6+6 I/O controller, paired with a 10m temp sensor, monitors operations. For power input, it uses 3-phase 240V 3L+N+PE, along with ABB breakers (1200A/3P and 1275Vac 20/40KA SPD). Equipped with a 1000A LVBD and battery copper bar output, its DC panels have ABB MCBs: Panel 1 (1020A/1P, 540A/1P); Panel 2 (540A/1P, 1063A/1P); Panel 3 (1080A, 5125A). Ideal for stable, high-efficiency power supply.
Specification
| Product name | Configuration |
|
48V 1000A big plant
| Cabinet size: H2000*W600*D650mm (Included front door, IP20 cabinet ,AC bottom in cables, DC top out cables) System Capacity 48V 48KW,Max 16 pcs 3000W rectifier slots, Including 16 pcs Flatpack2 48/3000HE ( 241119.105) Controller: Smartpack2 6+6 I/O,10m temperature sensor 3 phase 240V 3L+N+PE AC input, AC breaker (ABB): 1*200A/3P,1*275Vac 20/40KA ABB SPD) 1000A LVBD, battey cooper bar output DC panel 1 load MCB(ABB): 10*20A/1P,5*40A/1P DC panel 2 load MCB(ABB): 5*40A/1P, 10*63A/1P DC pnael 3 load MCB (ABB): 10*80A,5*125A
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
